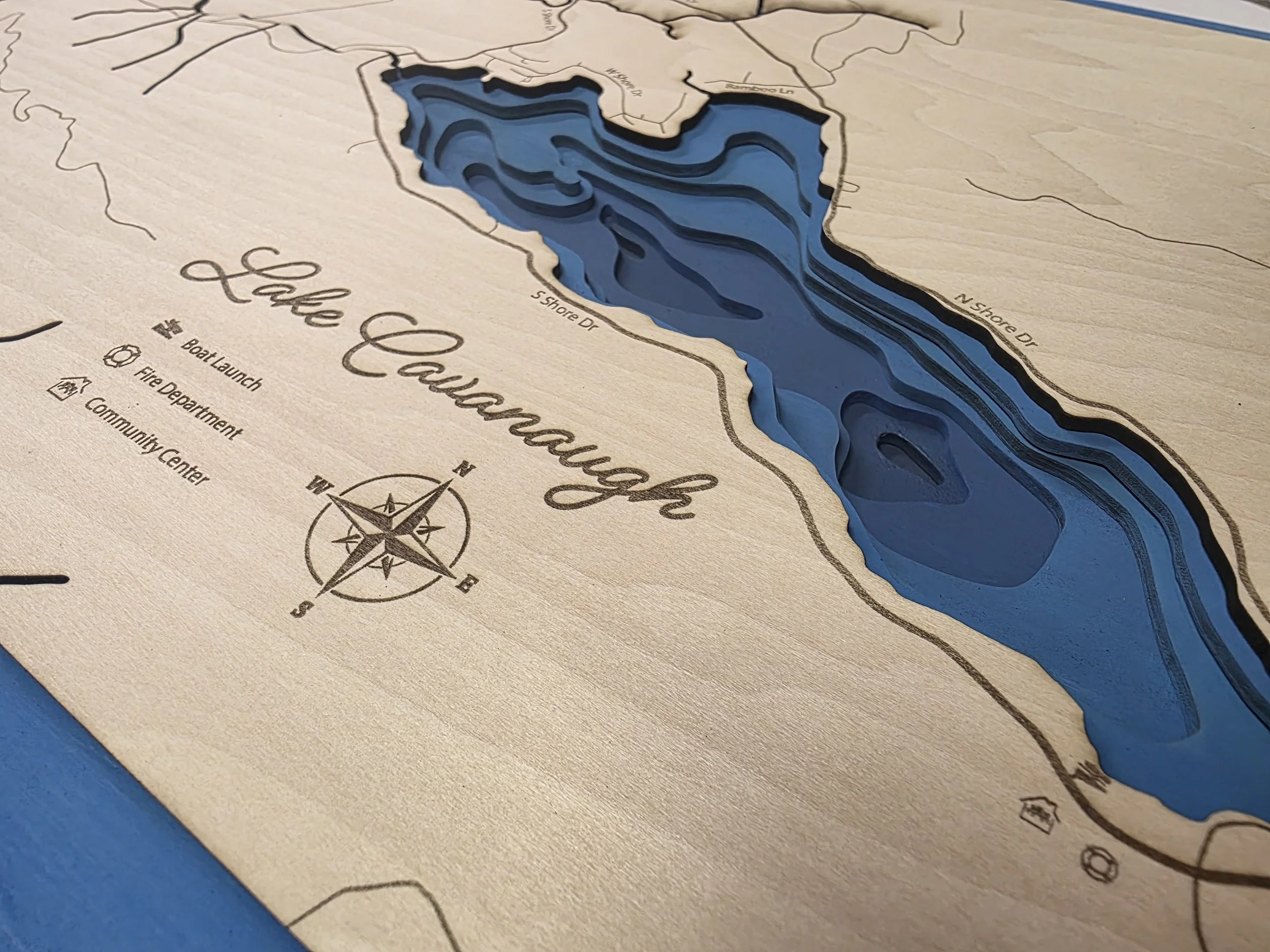

Lake Cavanaugh - Layered Depth Map

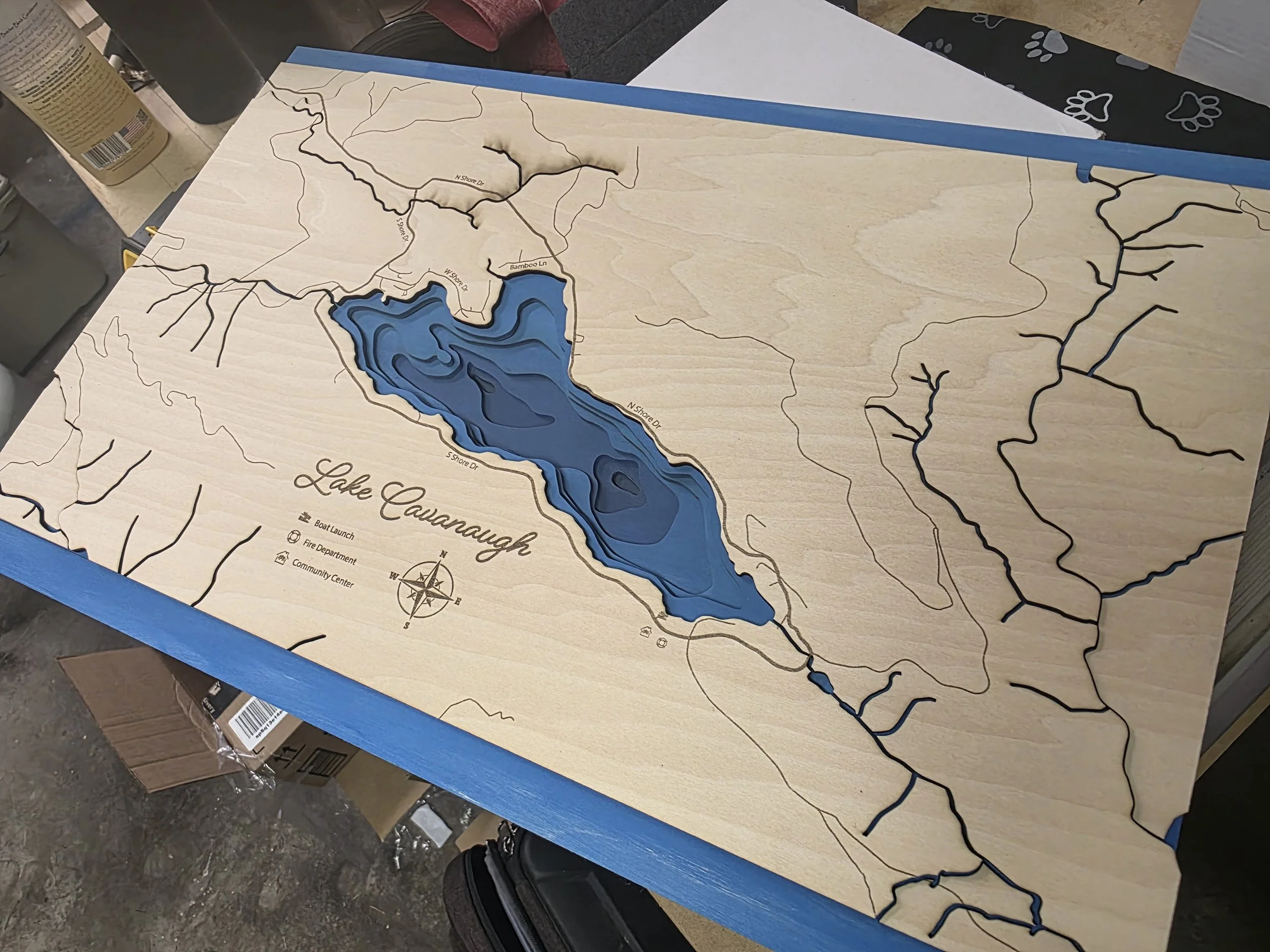

Process photos, completed photos to follow…

Engraver: xTool S1 40 Watt

Preparation: None (Paint & Glue/Assembly After)

Material(s): 1/8in Basswood, Acrylic Paint

Cut Settings: 100% Power - 15 mm/s Speed - 1 Pass (Air Assist = Max, the scorching shown in a small portion of the river was with air assist on auto, settings 3 and max eliminated scorching.)

Engraver Settings: 20% Power - 250 mm/s Speed - 1 Pass - 100 Lines per cm - Bi-directional

Did do a second pass on the words “Lake Cavanaugh”

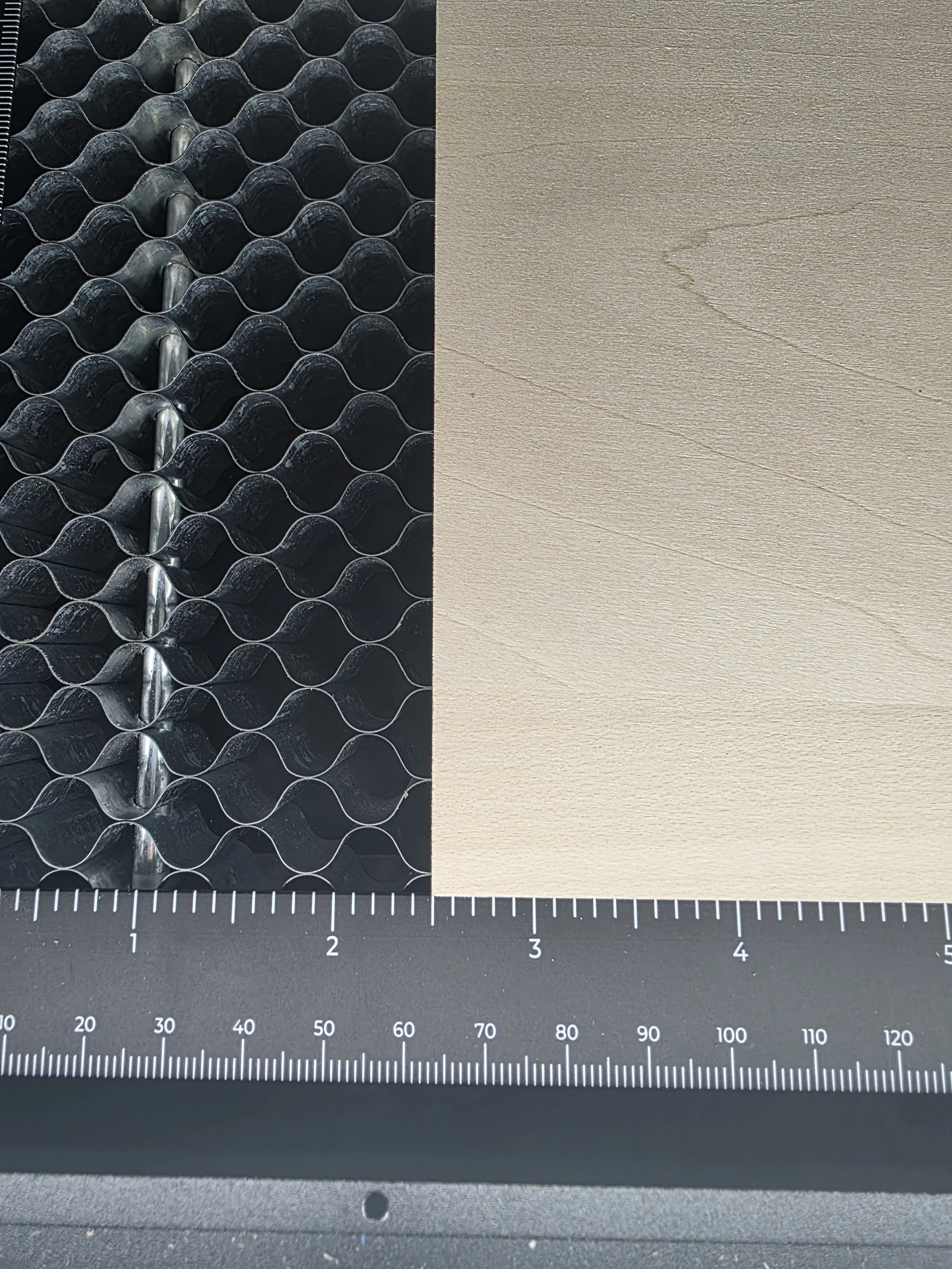

Used edge and measurements on honeycomb to align material for each layer. No clamping on lower layers, only clamped top layer which involved cutting.
